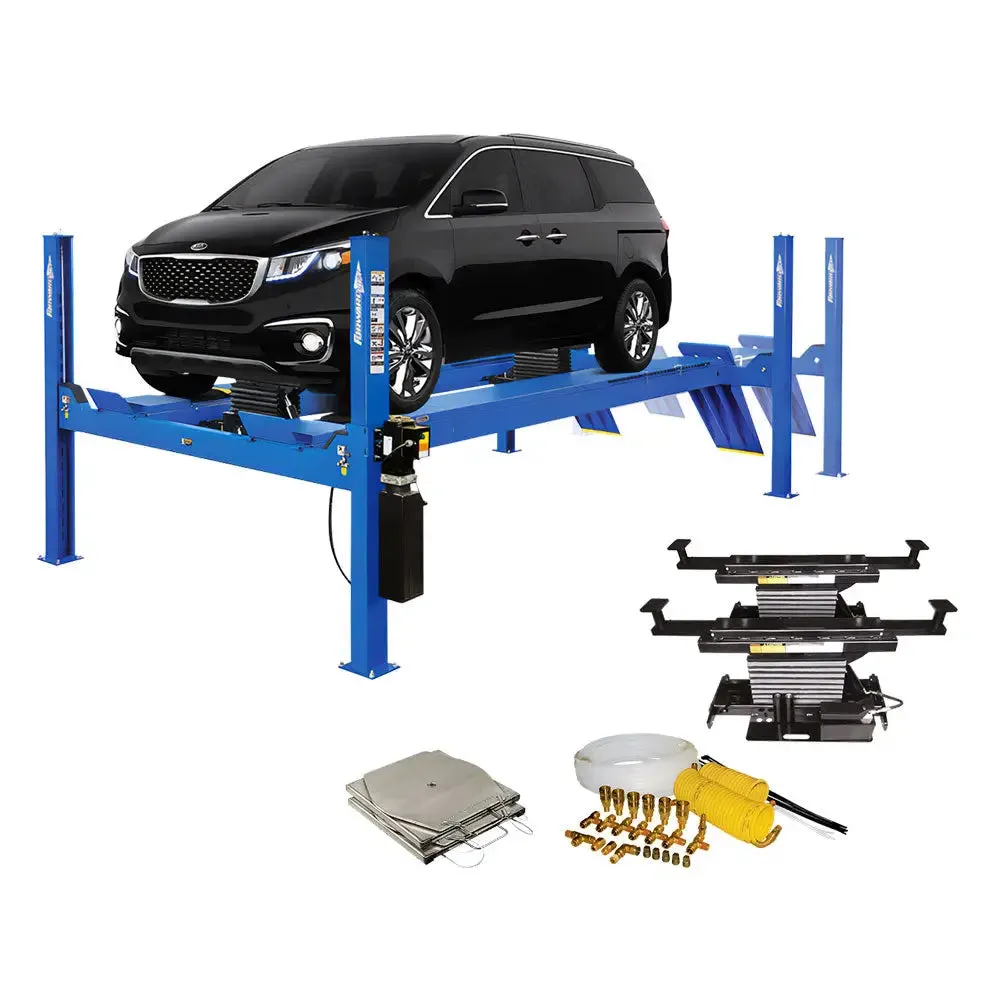

Looking for a top-quality extra-long alignment lift that can accommodate vehicles with longer wheelbases? Look no further than the CRA14-EL from Forward Lift. This 14,000 lb capacity lift has a 199" max 2-wheel alignment and 283" overall length. Plus, it comes with two 7,000 lbs rolling jacks, a pair of steel turntables, and an air line kit. And you can choose from two great colors: red or blue. So don't wait any longer; order your CRA14-EL today!
Features:
- Can service vehicles with longer wheel-base.
- Heavy-duty hydraulic cylinder.
- Internal airline standard.
- Single Point latch release system.
- One piece formed runway design incorporates rolling jack channels.
- Multiple position latch points in each structural leg.
- Rear wheel slip plates standard.
Specs:
Capacity: 14,000 lbs. (6350kg)Minimum Four Wheel Alignment: 88in (2235mm)
Maximum Wheelbase: 215in (5461mm)
Maximum Two Wheel Alignment: 199-1/4in (5060mm)
Maximum Four Wheel Alignment: 172-1/4in (4375mm)
Minimum Bay Size: 15ft x 28ft (4572mm x 8534mm)
Rise: 80-3/4in (2000mm)
Overall width: 131-3/4in (3346mm)
Overall length: 283in (7188mm)
Length between Columns: 228-1/4in (5798mm)
Width Inside Columns: 116-1/4in (2953mm)
Overall height: 90-1/2in (2281mm)
Runway width: 20in (508mm)
Runway Height: 9in (228mm
Width Between Runways: 43in (1092mm) or 46in (1168mm)
Front of Runway to Center of Radius Gauge: 22-11/16in to 52-11/16in (576mm-1338mm)
Rise Time: 72 seconds
Motor: 2HP
Ref No.:
CRA14N202YBL
CRA14N202YRD
CRA14-EL
CRA14-EL-BL
CRA14-EL-RD
